Below are the data sheets for all our “off-the-shelf” IR Coating Solutions. We offer custom design services as well for virtually all infrared materials including Zinc Selenide, Zinc Sulfide, Silicon, Chalcogenides, and other crystalline optical substrates.

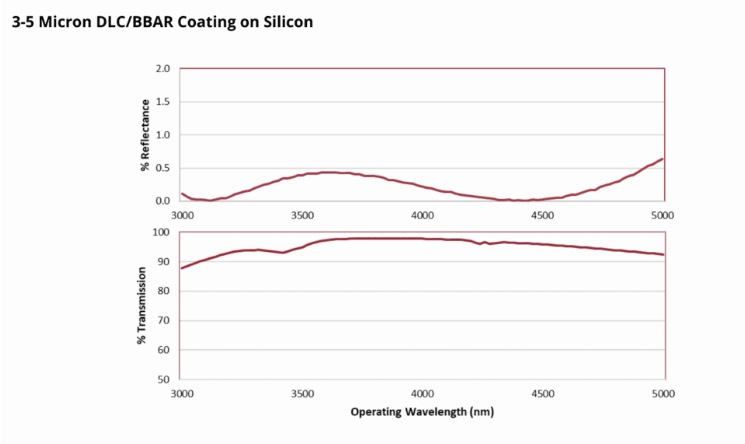

3-5 Micron DLC/BBAR on Silicon
Double surface coating on silicon substrate with one side DLC and the other BBAR.
<1.2% average reflectance per surface at normal AOI.
>90% total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!

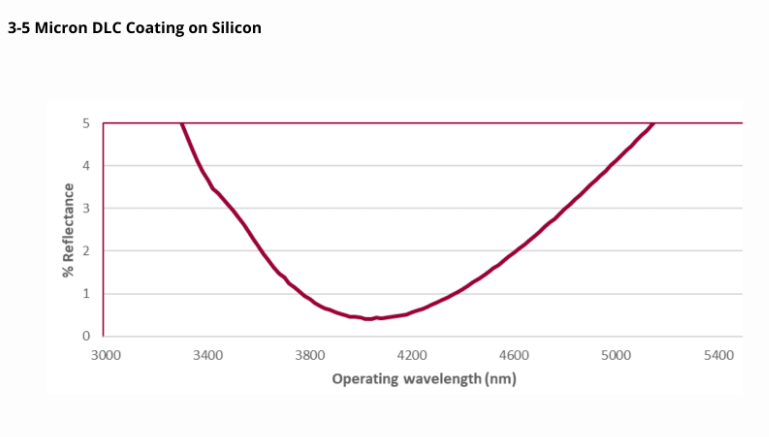

3-5 Micron DLC on Silicon
Single surface Diamond Like Carbon (DLC) coating on silicon substrate.
Reflectance of DLC can be optimized per customer specifications.

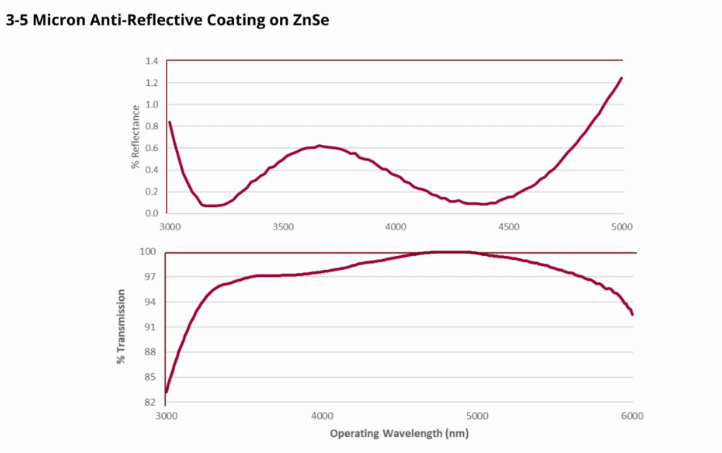

3-5 Micron BBAR on ZnSe
Double surface coating on ZnSe substrate.
<0.6% average reflectance per surface at normal AOI.
>97% average total transmission at normal AOI.
