Home > Products > Infrared Optical Components > Infrared Lens Assemblies > PE25-1.0
  • PE25-1.0
  • PE25-1.0

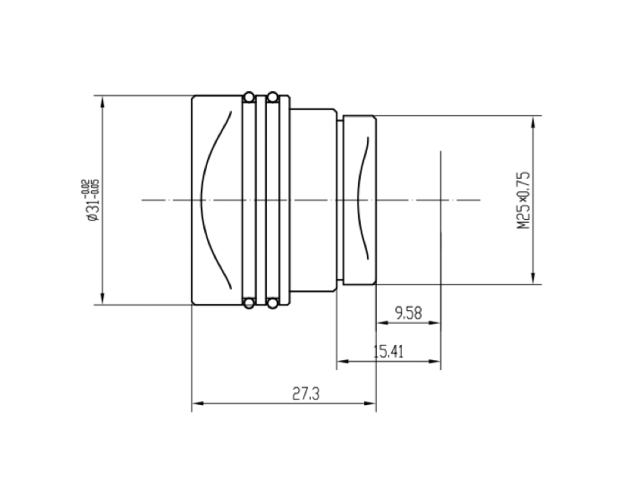

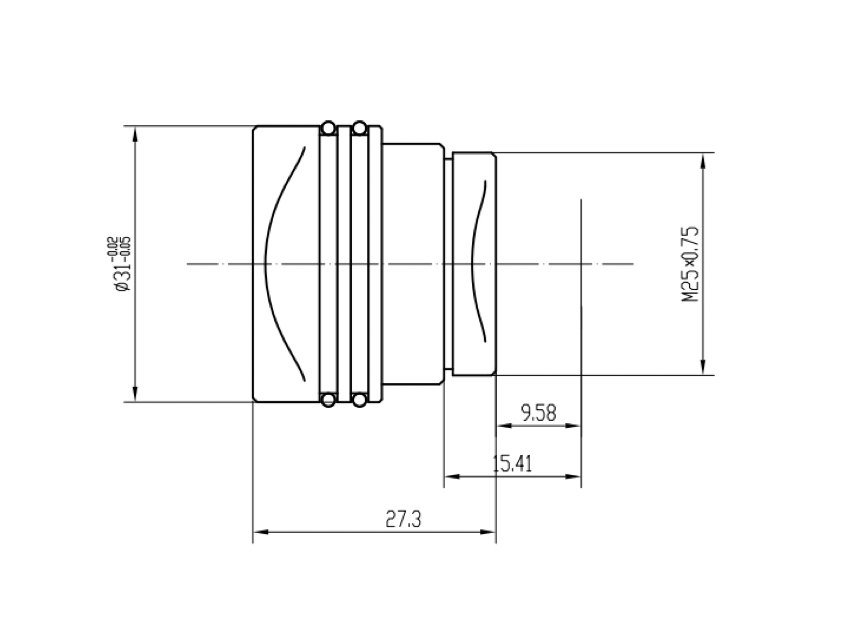

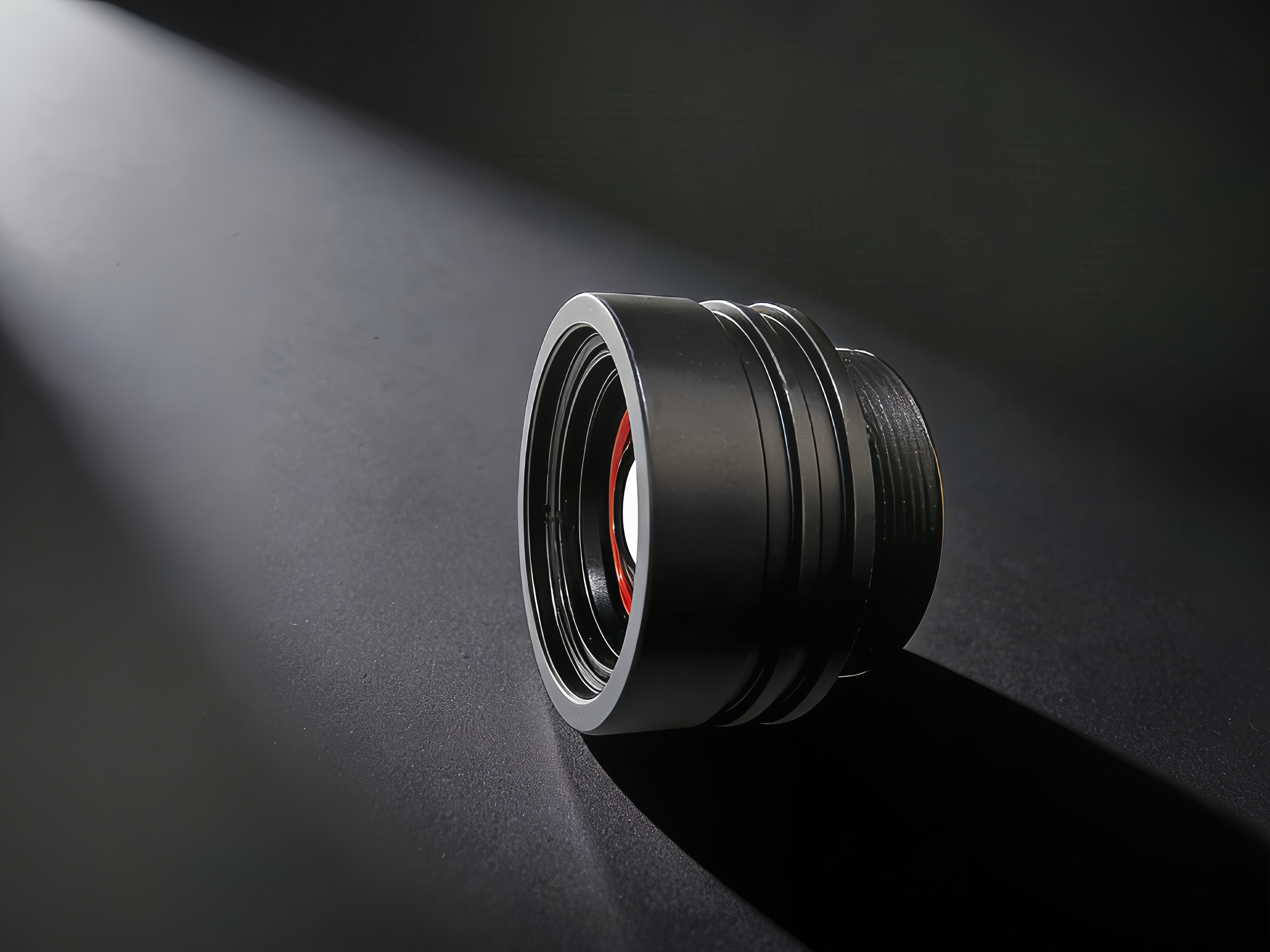

PE25-1.0

Items:PE25-1.0                               Detector Type: 640×480,
F-Number (F/#):1.0mm                  Focal Length:25mm,
Field of View (FOV): 17.4°x3.1°
Focus Type: Manual                       Focus Range:∞~3m
CONTACT US
  • PE25-1.0
  • PE25-1.0

Description

Main Specification
Items PE25-1.0
Detector Type 640×480
F-Number (F/#) 1.0mm
Focal Length 25mm
Field of View (FOV) 17.4°x3.1°
Operating Wavelength Range 8~12μm
Ave. Tran. ≥85% (AR)
Focus Type Manual
Focus Range ∞~3m
